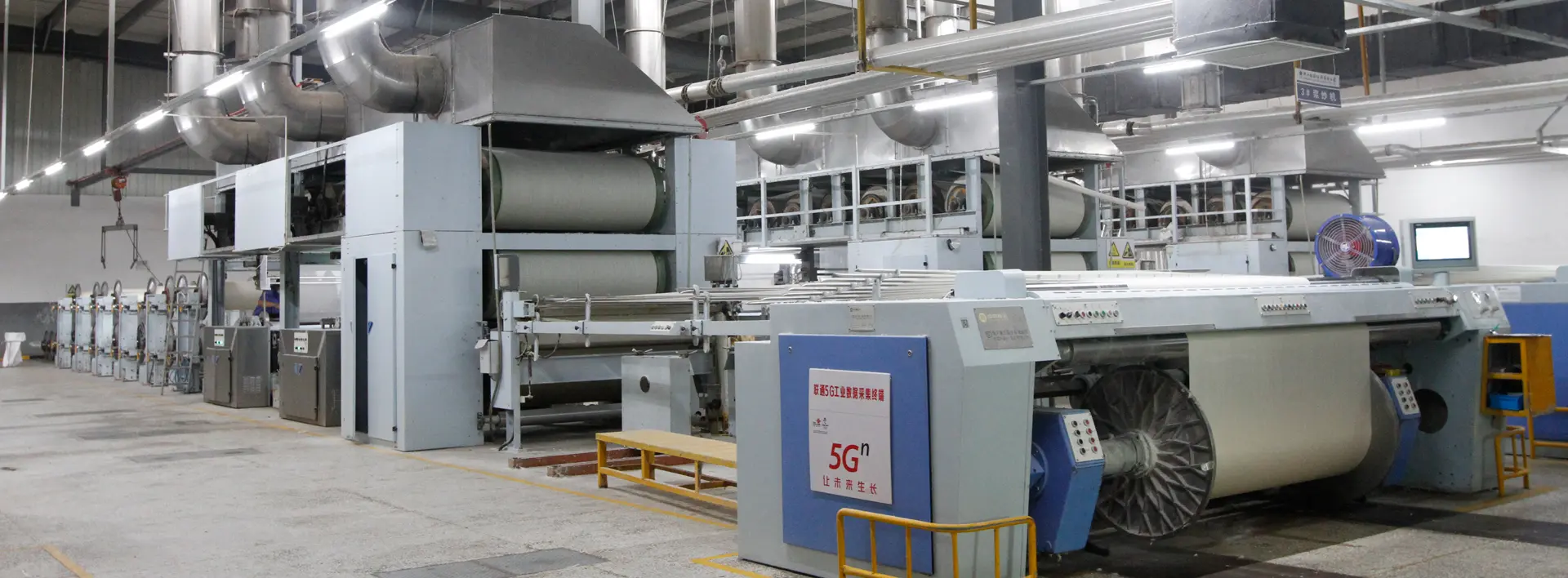

This apparatus is appropriate for the quality sizing procedure of lightweight textile made from various types of short natural fiber like cotton, cotton-polyester blends, and other synthetic fiber mixtures, and can fulfill the user's manufacturing requirements for rapidity, efficacy, eco-friendliness, energy conservation, digitalization, and intellectualization. This device employs a solitary sizing compartment, Six-Units propulsion, and extensively digitalized systems to offer consumers superior service.
Heightened Effectiveness: Maximum velocity 180m/min.
Heightened Accuracy: State-of-the-art control technology ensuring elevated precision in control, with a steady and dependable tension management.
Diminished Energy Usage: Utilization of high-pressure squeezing method and superior drying efficiency to curtail energy consumption.
Speed (m/min) |
2~180 |
|
Width of Weaving Beam (mm) |
2400 |
2800 |
Diameter of Weaving Beam (mm) |
1000
|
1100
|
Working Width of Warp Beam/ Sizing Box/ Drying cylinder (mm) |
1800 |
2000 |
Number of Sizing Box |
1 |
1 |
Number of Drying Cylinder |
10 |
12 |

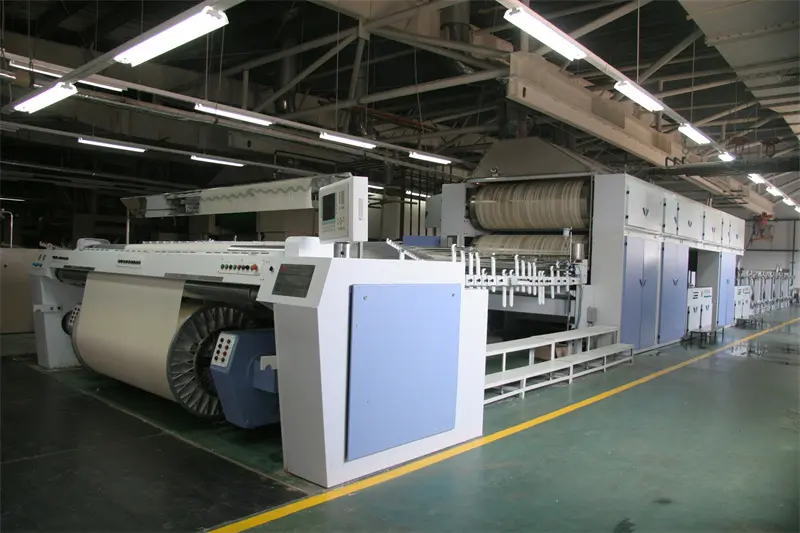

● Merged Structure in Winding Transmission, Direct Motor Propulsion at Pulling Roll, boasting a streamlined build and precise transmission.
● The most recent concept in winding mechanism, Direct-Monitor Tension ensuring top-notch control accuracy.
● Security Grid installed during winding to guarantee production safety.
● Featuring an automatic centering feature on the weaving beam for added operational convenience. (Optional)
01

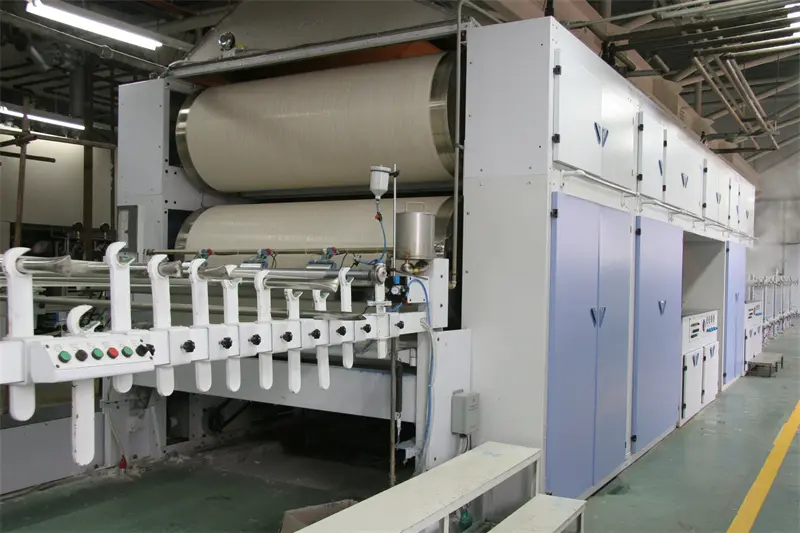

● Enhanced arrangement of drying drum for enhanced drying effectiveness.
● Adaptable thread pathway ideal for both singular and dual thread pathways.
● Modular assembly for swift setup and heightened steadiness.
● Steam canopy with dual-layered thermal insulation for efficient energy reduction.
● Precision-oriented transmission mechanism for seamless and dependable functionality.
01

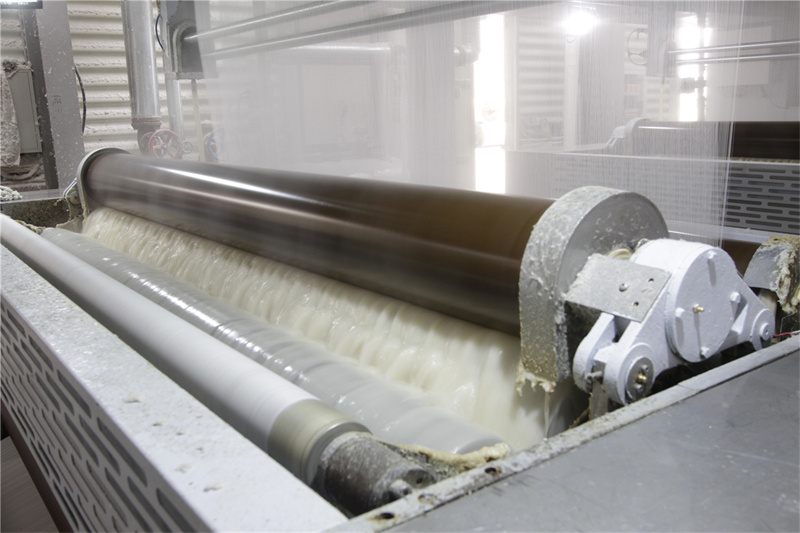

● Cutting-edge Quadruple-Roll configuration for consistent and steadfast sizing, featuring a streamlined design for ease of operation.
● Utilization of Direct Motor Propulsion on both sizing and delivery rollers, boasting a simplified build and precise transmission.
● Cascading overflow of sizing solution to maintain its freshness and effectively minimize surface scum formation.
● Maximum compressive force capped at 50KN with linear intensification to ensure seamless and dependable performance.
01

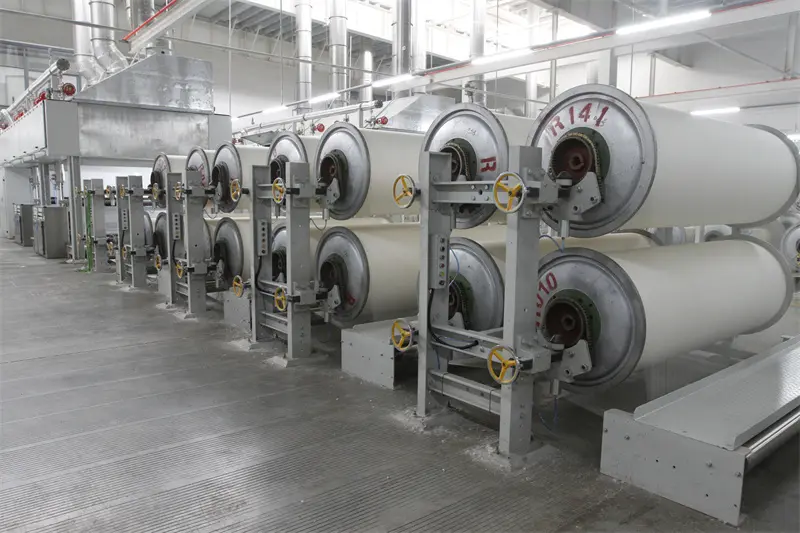

● Structural integration of the frame to enable modular assembly.
● Balanced arrangement of warp beam for consistent high-speed operation.
● Dual-sided compressed brake to guarantee uniform and dependable tension.
01
